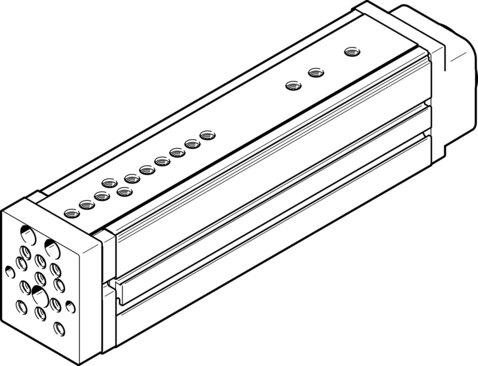

Reference imageConfirm configuration by manufacturer part number.
Festo
559337
Mini slide EGSL-BS-55-100-12.7P
The Festo 559337 is an electrical mini-slide featuring an integrated guide and ball screw, compatible with stepper or servo motors and position sensing via proximity switch. It delivers a 100 mm working stroke, a size 55 footprint, a 12.7 mm screw diameter and spindle pitch, a ball bearing cage guide, and supports any mounting position. Operational parameters include a 100% duty cycle, a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², a repetition accuracy of ±0.015 mm, a reversing backlash of 50 µm, Z-axis running parallelism of 0.04 mm, overall parallelism of 0.05 mm, and a 65 dB(A) noise level with CRC 0 corrosion resistance and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 559337
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 559337.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 55
- Run. parallelism along Z-axis
- 0.04 mm
- Parallelism
- 0.05 mm
- Reversing backlash
- 50 µm
- Screw diameter
- 12.7 mm
- Spindle pitch
- 12.7 mm/U
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Electrical mini-slide | Guide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Noise level
- 65 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Continuous feed force
- 200 N
- Max. driving torque
- 1.017 Nm
- Max. force Fy
- 1047 N
- Max. force Fz
- 1047 N
- Max. torque Mx
- 33.1 Nm
- Max. torque My
- 31 Nm
- Max. torque Mz
- 31 Nm
