Festo
559652

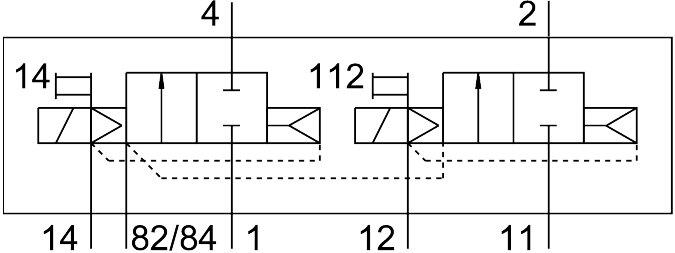

Air solenoid valve CPV14-M1H-2X2-GLS-K-1/8
The Festo 559652 is a 14 mm electrical piston gate valve featuring a 2x2/2 closed, monostable configuration with a normal nominal flow rate of 800 l/min and G1/8 pneumatic working ports. This IP65-rated component operates at 24V DC across an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and utilizes piloted control with internal or external pilot air supply options, a soft sealing principle, and both detenting and non-detenting manual override capabilities. Featuring a pneumatic spring reset method, positive overlap lap, and a nominal width of 6 mm, it accommodates a pilot pressure of 0.3 MPa to 0.8 MPa in any mounting position with a non-reversible flow direction and non-throttleable exhaust air function. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 559652
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 559652.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65
- Nominal width
- 6 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.37
- C value
- 3.2 l/sbar
- Switching time off
- 16 ms
- On switching time
- 13 ms
- Duty cycle
- 100% in combination with holding current reduction
- Electrical power consumption
- 0.65 W
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse on 1 signal
- 400 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 559652. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
