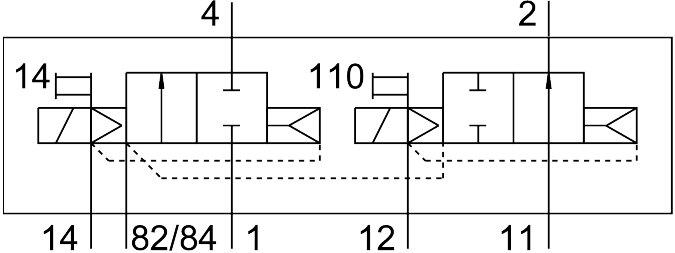

Reference imageConfirm configuration by manufacturer part number.
Festo
559653
Air solenoid valve CPV14-M1H-2OLS-2GLS-K-1/8
The Festo 559653 is an electrical 14 mm piston gate valve featuring a 2x2/2, open/closed, monostable valve function with a normal nominal flow rate of 800 l/min and G1/8 pneumatic working ports. Operating at 24V DC across an operating pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa), this piloted component incorporates a soft sealing principle, pneumatic spring reset method, and an IP65 degree of protection. Featuring internal or external pilot air supply ports with a pilot pressure of 0.3 MPa to 0.8 MPa, it also includes both detenting and non-detenting manual override options for any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 559653
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 559653.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x2/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65
- Nominal width
- 6 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- b-value
- 0.37
- C value
- 3.2 l/sbar
- Switching time off
- 16 ms
- On switching time
- 13 ms
- Duty cycle
- 100% in combination with holding current reduction
- Electrical power consumption
- 0.65 W
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse on 1 signal
- 400 µs
