Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

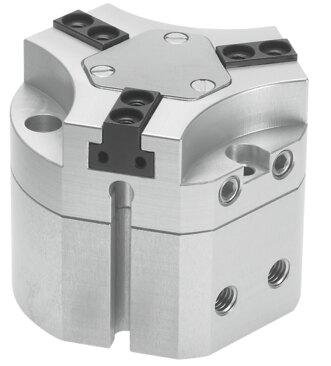

Reference imageConfirm configuration by manufacturer part number.
Festo
560187
Three-point gripper HGDT-50-A-F-G1
The Festo part number 560187 is a double-acting industrial component featuring a 3-point gripper function with three gripper jaws and a size of 50. This unit delivers a stroke of 4 mm per gripper jaw, a repetition accuracy of 0.03 mm, and an operating pressure range of 4 bar to 8 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. Position sensing is achieved via a proximity switch, supported by an inclined plane structural design with positively driven motion sequence and gripping force backup on opening. Submit your exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560187
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560187.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke per gripper jaw
- 4 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.05 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.03 mm
- Number of gripper jaws
- 3
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- 3-point
- Gripping force backup
- On opening
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 4 Hz
- Min. opening time at 6 bar
- 31 ms
- Min. closing time at 6 bar
- 170 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 15.33 kgcm²
- Maximum force on gripper jaw Fz, static
- 1500 N
- Maximum torque on gripper jaw, Mx static
- 50 Nm
- Maximum torque on gripper jaw, My static
- 30 Nm
- Maximum torque on gripper jaw, Mz static
- 40 Nm
- Relubrication interval for guidance elements
- 5 MioCyc
- Max. mass per external gripper nger
- 160 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560187. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
