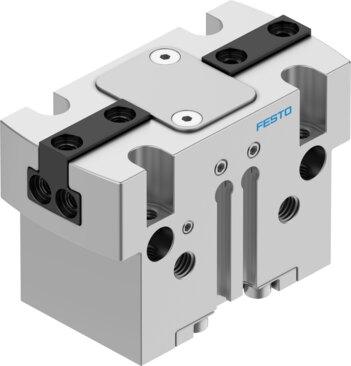

Reference imageConfirm configuration by manufacturer part number.
Festo
560200
Parallel gripper HGPT-20-A-B-G2
The Festo 560200 is a double-acting pneumatic industrial component featuring a size 20 parallel gripper function with two gripper jaws and a stroke of 4 mm per jaw. Utilizing an inclined plane and positively driven motion sequence, this actuator system operates at pressures from 4 bar to 8 bar with a gripping force backup during closing, delivering a repetition accuracy of 0.04 mm, a maximum operating frequency of 3 Hz, and position sensing via proximity switch. It supports an operating pressure for sealing air from 0 bar to 0.5 bar, a maximum interchangeability of 0.2 mm, a maximum gripper jaw angular play ax, ay of 0.1 deg, a maximum gripper jaw backlash Sz of 0.02 mm, a rotational symmetry of 0.2 mm, a minimum opening time of 35 ms at 6 bar, and a minimum closing time of 18 ms at 6 bar in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560200
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560200.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Stroke per gripper jaw
- 4 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.04 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 3 Hz
- Min. opening time at 6 bar
- 35 ms
- Min. closing time at 6 bar
- 18 ms
- Max. mass per external gripper nger
- 50 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 0.445 kgcm²
- Maximum force on gripper jaw Fz, static
- 700 N
- Maximum torque on gripper jaw, Mx static
- 15 Nm
- Maximum torque on gripper jaw, My static
- 15 Nm
