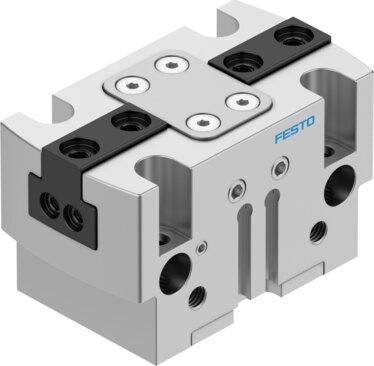

Reference imageConfirm configuration by manufacturer part number.
Festo
560204
Parallel gripper HGPT-25-A-B
The Festo part number 560204 is a size 25 double-acting pneumatic parallel gripper featuring two jaws with a stroke of 6 mm per jaw and an inclined plane structural design with a positively driven motion sequence. It operates at a pressure range of 3 bar to 8 bar with sealing air operating pressure from 0 bar to 0.5 bar, achieving a maximum operating frequency of 3 Hz along with a minimum opening time of 26 ms and closing time of 32 ms at 6 bar. Technical tolerances include a repetition accuracy of 0.04 mm, a maximum interchangeability and rotational symmetry of 0.2 mm, a maximum jaw angular play of 0.1 deg, and a maximum jaw backlash of 0.02 mm, while utilizing proximity switches for position sensing in any mounting position without gripping force backup. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560204
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560204.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke per gripper jaw
- 6 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.04 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 3 Hz
- Min. opening time at 6 bar
- 26 ms
- Min. closing time at 6 bar
- 32 ms
- Max. mass per external gripper nger
- 110 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 266 N | 133 N
- Gripping force per gripper jaw at 6 bar, closing
- 248 N | 124 N
