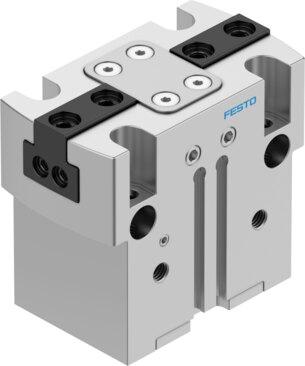

Reference imageConfirm configuration by manufacturer part number.
Festo
560206
Parallel gripper HGPT-25-A-B-G2
The Festo part number 560206 is a size 25 pneumatic parallel gripper featuring two jaws, a double-acting mode of operation, and an inclined plane structural design with positively driven motion sequence. This component delivers a 6 mm stroke per gripper jaw, a repetition accuracy of 0.04 mm, a max interchangeability of 0.2 mm, and position sensing via proximity switch. Operating at a pressure range of 4 bar to 8 bar with sealing air from 0 bar to 0.5 bar, it achieves a max operating frequency of 3 Hz alongside a min opening time of 40 ms and min closing time of 28 ms at 6 bar. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560206
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560206.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke per gripper jaw
- 6 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.04 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 3 Hz
- Min. opening time at 6 bar
- 40 ms
- Min. closing time at 6 bar
- 28 ms
- Max. mass per external gripper nger
- 110 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 1.479 kgcm²
- Maximum force on gripper jaw Fz, static
- 1200 N
- Maximum torque on gripper jaw, Mx static
- 50 Nm
- Maximum torque on gripper jaw, My static
- 45 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560206. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
