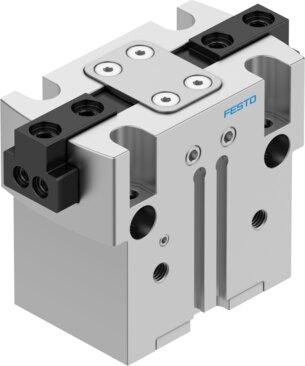

Reference imageConfirm configuration by manufacturer part number.
Festo
560208
Parallel gripper HGPT-25-A-B-F-G1
The Festo part number 560208 is a double-acting pneumatic parallel gripper featuring two jaws with a size of 25 and a stroke of 3 mm per jaw. Utilizing an inclined plane structural design with positively driven motion sequence, this component operates at 4 bar to 8 bar with a gripping force backup on opening and position sensing via proximity switch. It achieves a repetition accuracy of 0.04 mm, max. interchangeability of 0.2 mm, max. gripper jaw angular play ax, ay of 0.1 deg, max. gripper jaw backlash Sz of 0.02 mm, rotational symmetry of 0.2 mm, sealing air operating pressure of 0 bar to 0.5 bar, max. operating frequency of 3 Hz, min. opening time at 6 bar of 24 ms, and min. closing time at 6 bar of 45 ms in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560208
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560208.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke per gripper jaw
- 3 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.04 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- On opening
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 3 Hz
- Min. opening time at 6 bar
- 24 ms
- Min. closing time at 6 bar
- 45 ms
- Max. mass per external gripper nger
- 110 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 1.479 kgcm²
- Maximum force on gripper jaw Fz, static
- 1200 N
- Maximum torque on gripper jaw, Mx static
- 50 Nm
- Maximum torque on gripper jaw, My static
- 45 Nm
