Festo
560210

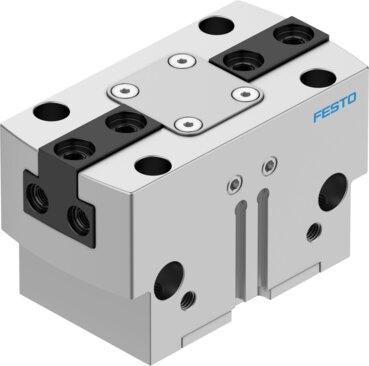

Parallel gripper HGPT-35-A-B
The Festo part number 560210 is a double-acting pneumatic parallel gripper featuring two jaws with an 8 mm stroke per jaw and a size 35 designation. Built with an inclined plane structural design and positively driven motion sequence, this component operates within a 3 bar to 8 bar pressure range and supports sealing air pressure from 0 bar to 0.5 bar. It achieves a repetition accuracy of 0.05 mm, a maximum operating frequency of 3 Hz, and minimum opening and closing times of 36 ms and 67 ms respectively at 6 bar. Position sensing is accomplished via proximity switch, and the unit can be mounted in any position. Submit the exact part number, quantity, and application requirements to receive a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560210
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560210.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 35
- Stroke per gripper jaw
- 8 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 3 Hz
- Min. opening time at 6 bar
- 36 ms
- Min. closing time at 6 bar
- 67 ms
- Max. mass per external gripper nger
- 180 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 490 N | 245 N
- Gripping force per gripper jaw at 6 bar, closing
- 458 N | 229 N
