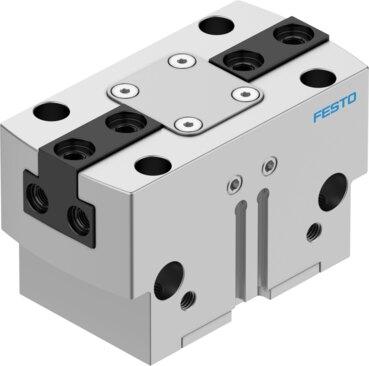

Reference imageConfirm configuration by manufacturer part number.
Festo
560213
Parallel gripper HGPT-35-A-B-F
The Festo part number 560213 is a pneumatic industrial component featuring a size 35 parallel gripper function with two jaws and an inclined plane structural design with positively driven motion sequence. This double-acting actuator operates between 3 bar and 8 bar, delivering a repetition accuracy of 0.05 mm, a maximum operating frequency of 3 Hz, and minimum opening and closing times of 33 ms and 70 ms respectively at 6 bar. Position sensing is achieved via proximity switch, supporting sealing air operating pressures from 0 bar to 0.5 bar in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560213
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560213.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 35
- Stroke per gripper jaw
- 4 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 3 Hz
- Min. opening time at 6 bar
- 33 ms
- Min. closing time at 6 bar
- 70 ms
- Max. mass per external gripper nger
- 180 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 1000 N | 500 N
- Gripping force per gripper jaw at 6 bar, closing
- 934 N | 467 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560213. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
