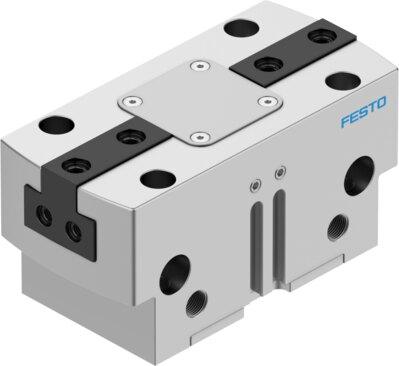

Reference imageConfirm configuration by manufacturer part number.
Festo
560222
Parallel gripper HGPT-50-A-B
The Festo part number 560222 is a double-acting pneumatic parallel gripper featuring two jaws and a size 50 designation with a 12 mm stroke per gripper jaw. Operating within a pressure range of 3 bar to 8 bar and supporting sealing air from 0 bar to 0.5 bar, this component utilizes an inclined plane structural design with positively driven motion sequence, achieving a repetition accuracy of 0.05 mm and a maximum operating frequency of 2 Hz. Position sensing is accomplished via proximity switch, while technical tolerances include a maximum interchangeability of 0.2 mm, a rotational symmetry of 0.2 mm, a maximum angular play ax, ay of 0.1 deg, and a maximum gripper jaw backlash Sz of 0.02 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke per gripper jaw
- 12 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 80 ms
- Min. closing time at 6 bar
- 85 ms
- Max. mass per external gripper nger
- 640 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 1140 N | 570 N
- Gripping force per gripper jaw at 6 bar, closing
- 1070 N | 535 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
