Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

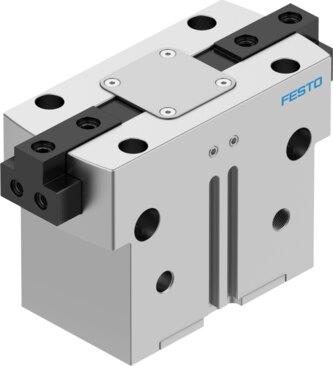

Reference imageConfirm configuration by manufacturer part number.
Festo
560223
Parallel gripper HGPT-50-A-B-G1
The Festo 560223 is a double-acting pneumatic parallel gripper featuring two jaws, a size 50 designation, and a 12 mm stroke per gripper jaw utilizing an inclined plane and positively driven motion sequence. This component achieves a repetition accuracy of 0.05 mm, a maximum interchangeability of 0.2 mm, a rotational symmetry of 0.2 mm, a maximum gripper jaw backlash Sz of 0.02 mm, and a maximum gripper jaw angular play ax, ay of 0.1 deg with gripping force backup on opening. Operating within a pressure range of 4 bar to 8 bar and a ceiling air pressure of 0 bar to 0.5 bar, it delivers a minimum opening time of 70 ms and minimum closing time of 153 ms at 6 bar with a maximum operating frequency of 2 Hz. Position sensing is accomplished via proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560223
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560223.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke per gripper jaw
- 12 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- On opening
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 70 ms
- Min. closing time at 6 bar
- 153 ms
- Max. mass per external gripper nger
- 640 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 29.423 kgcm²
- Maximum force on gripper jaw Fz, static
- 3200 N
- Maximum torque on gripper jaw, Mx static
- 120 Nm
- Maximum torque on gripper jaw, My static
- 120 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560223. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
