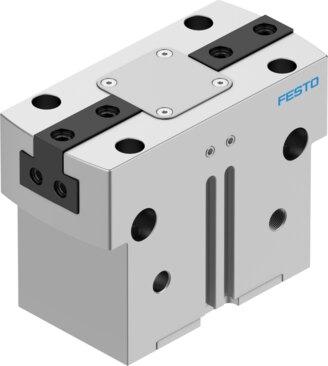

Reference imageConfirm configuration by manufacturer part number.
Festo
560227
Parallel gripper HGPT-50-A-B-F-G2
The Festo 560227 is a size 50 parallel pneumatic gripper featuring a double-acting mode of operation and two gripper jaws with an inclined plane structural design for positively driven motion sequences. It provides a 6 mm stroke per gripper jaw, a repetition accuracy of 0.05 mm, a maximum operating frequency of 2 Hz, and integrated position sensing via proximity switch. Operating pressure ranges from 4 bar to 8 bar with a sealing air pressure range of 0 bar to 0.5 bar, delivering a minimum opening time of 137 ms and a minimum closing time of 80 ms at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560227
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560227.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke per gripper jaw
- 6 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 137 ms
- Min. closing time at 6 bar
- 80 ms
- Max. mass per external gripper nger
- 640 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 29.423 kgcm²
- Maximum force on gripper jaw Fz, static
- 3200 N
- Maximum torque on gripper jaw, Mx static
- 120 Nm
- Maximum torque on gripper jaw, My static
- 120 Nm
