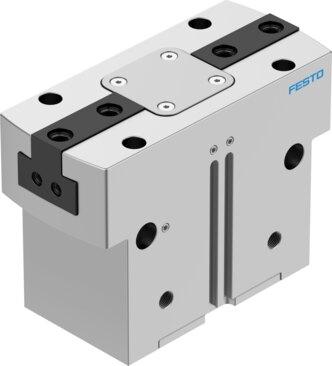

Reference imageConfirm configuration by manufacturer part number.
Festo
560233
Parallel gripper HGPT-63-A-B-F-G2
The Festo 560233 is a double-acting pneumatic parallel gripper featuring two jaws with an 8 mm stroke per jaw and size 63 designation. This component utilizes an inclined plane structural design with positively driven motion sequence, a gripping force backup during closing, and position sensing via proximity switch. It operates within a 4 bar to 8 bar pressure range, supports 0 bar to 0.5 bar sealing air pressure, achieves a maximum operating frequency of 2 Hz, and provides a repetition accuracy of 0.05 mm. Request a formal quote by submitting your required quantity and application specifications for part number 560233.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560233
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560233.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Stroke per gripper jaw
- 8 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- During closing
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 308 ms
- Min. closing time at 6 bar
- 154 ms
- Max. mass per external gripper nger
- 1260 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 93.034 kgcm²
- Maximum force on gripper jaw Fz, static
- 5000 N
- Maximum torque on gripper jaw, Mx static
- 160 Nm
- Maximum torque on gripper jaw, My static
- 180 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560233. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
