Reference imageConfirm configuration by manufacturer part number.
Festo
560234

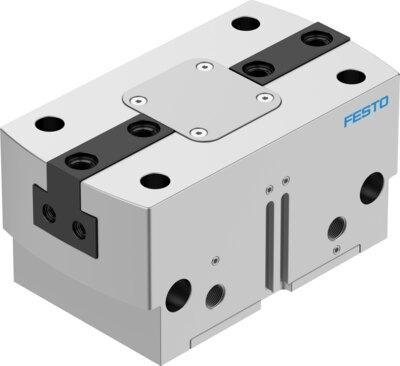

Parallel gripper HGPT-80-A-B
The Festo part number 560234 is a size 80 pneumatic parallel gripper featuring two jaws with a stroke of 25 mm per jaw, operating on a double-acting mechanism with an inclined plane and positively driven motion sequence. This component functions within an operating pressure range of 3 bar to 8 bar, featuring sealing air operating pressure from 0 bar to 0.5 bar, a repetition accuracy of 0.05 mm, and position sensing via proximity switch. It delivers a maximum operating frequency of 2 Hz with a minimum opening time of 214 ms and closing time of 213 ms at 6 bar, while maintaining a maximum interchangeability of 0.2 mm, rotational symmetry of 0.2 mm, jaw angular play of 0.1 deg, and jaw backlash of 0.02 mm in any mounting position without gripping force backup. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560234
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560234.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke per gripper jaw
- 25 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 214 ms
- Min. closing time at 6 bar
- 213 ms
- Max. mass per external gripper nger
- 1830 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 3226 N | 1613 N
- Gripping force per gripper jaw at 6 bar, closing
- 3102 N | 1551 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560234. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
