Festo
560235

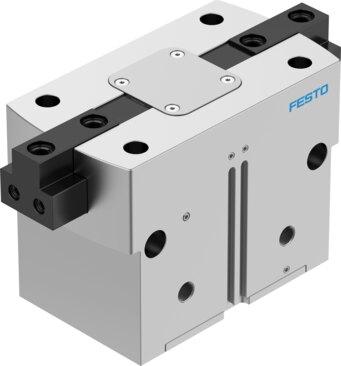

Parallel gripper HGPT-80-A-B-G1
The Festo part number 560235 is a pneumatic industrial component featuring a size 80 parallel gripper function with two double-acting gripper jaws and a 25 mm stroke per jaw. Built with an inclined plane structural design and positively driven motion sequence, this unit delivers a repetition accuracy of 0.05 mm, a max interchangeability of 0.2 mm, and a max operating frequency of 2 Hz within an operating pressure range of 4 bar to 8 bar. Position sensing is achieved via a proximity switch, while operating pressure for sealing air ranges from 0 bar to 0.5 bar, supporting a min opening time of 182 ms and a min closing time of 353 ms at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560235
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560235.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke per gripper jaw
- 25 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- On opening
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 182 ms
- Min. closing time at 6 bar
- 353 ms
- Max. mass per external gripper nger
- 1830 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 238.336 kgcm²
- Maximum force on gripper jaw Fz, static
- 7000 N
- Maximum torque on gripper jaw, Mx static
- 180 Nm
- Maximum torque on gripper jaw, My static
- 220 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560235. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
