Festo
560238

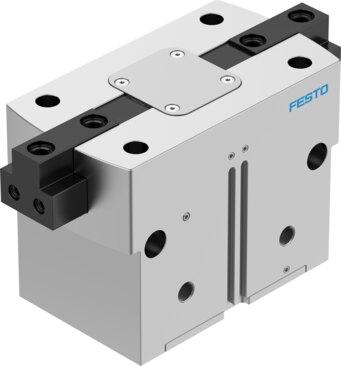

Parallel gripper HGPT-80-A-B-F-G1
The Festo part number 560238 is a size 80 pneumatic industrial component featuring two parallel gripper jaws with a double-acting mode of operation and a stroke of 12.5 mm per jaw. It utilizes an inclined plane structural design with positively driven motion sequence, providing a gripping force backup on opening, position sensing via proximity switch, and an operating pressure range from 4 bar to 8 bar. Operating at a maximum frequency of 2 Hz with minimum opening and closing times of 180 ms and 340 ms respectively at 6 bar, this unit achieves a repetition accuracy of 0.05 mm, a maximum interchangeability of 0.2 mm, and allows mounting in any position. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560238
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560238.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Stroke per gripper jaw
- 12.5 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- On opening
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 4 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 180 ms
- Min. closing time at 6 bar
- 340 ms
- Max. mass per external gripper nger
- 1830 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 238.336 kgcm²
- Maximum force on gripper jaw Fz, static
- 7000 N
- Maximum torque on gripper jaw, Mx static
- 180 Nm
- Maximum torque on gripper jaw, My static
- 220 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560238. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
