Name: Festo 560361 Analogue module CPX-4AE-P-B2
Brand: Festo

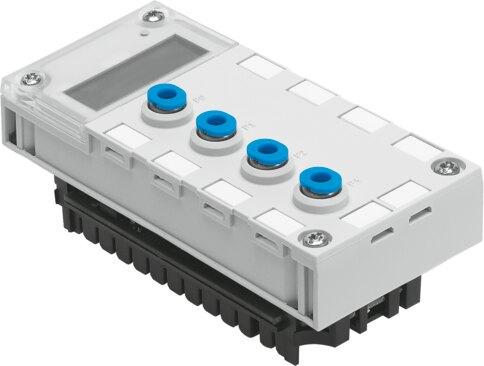

Analogue module CPX-4AE-P-B2

The Festo industrial component, part number 560361, is an electronic unit measuring 50 mm by 107 mm by 55 mm with an interlinking block and a product weight of 115 g. Constructed with a PA-reinforced and PC housing offering IP65 and IP67 protection, it operates on a nominal DC voltage of 24 V within a voltage range of 18 V to 30 V and features QS-4 pneumatic connections. This device processes compressed air per ISO 8573-1:2010 [7:4:4] across a medium temperature of 0 °C to 50 °C and includes 1 group diagnostics with an internal cycle time of 5 ms. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560361
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560361.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 55 mm
Product weight: 115 g
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: 0 °C...50 °C
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Housing material: PA-reinforced | PC
Pneumatic connection: QS-4
LED indicators: 1 group diagnostics
Diagnostics: Limit value violation per channel | Parameterization error | Sensor limit per channel
Parameterization: Diagnostic delay per channel | Hysteresis per module | Unit of measurement | Measured value smoothing per channel | Limit value monitoring per channel diagnostics | Sensor limit per channel diagnostics | Relative/diﬀerential pressure measurement
Internal cycle time: 5 ms
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Type. 50 mA
No. of inputs: 4
Measured variable: 4x relative pressure/2x diﬀerential pressure
Displayable unit(s): KPa
