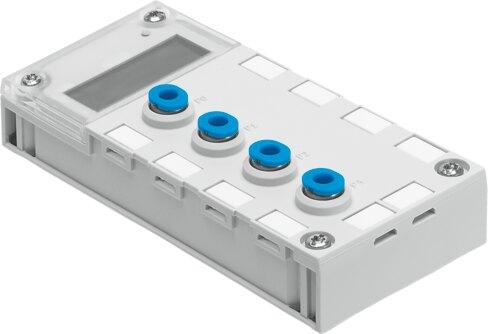

Reference imageConfirm configuration by manufacturer part number.
Festo
560362
Analogue module CPX-4AE-P-D10
The Festo 560362 is an industrial component measuring 50 mm by 107 mm by 55 mm with an interlinking block and a product weight of 115 g. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a medium and ambient temperature range of 0 °C to 50 °C and -5 °C to 50 °C respectively, this RoHS-compliant unit features a reinforced PA and PC housing with IP65 and IP67 protection. It includes QS-4 pneumatic connections, 1 group diagnostics LED indicators, and supports a nominal 24 V DC operating voltage with a typical intrinsic current consumption of 50 mA. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560362
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560362.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block) | 50 mm x 107 mm x 55 mm
- Product weight
- 115 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced | PC
- Pneumatic connection
- QS-4
- LED indicators
- 1 group diagnostics
- Diagnostics
- Limit value violation per channel | Parameterization error | Sensor limit per channel
- Parameterization
- Diagnostic delay per channel | Hysteresis per module | Unit of measurement | Measured value smoothing per channel | Limit value monitoring per channel diagnostics | Sensor limit per channel diagnostics | Relative/differential pressure measurement
- Internal cycle time
- 5 ms
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Intrinsic current consumption at nominal operating voltage
- Type. 50 mA
- No. of inputs
- 4
- Measured variable
- 4x relative pressure/2x differential pressure
- Displayable unit(s)
- KPa
