Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
560413

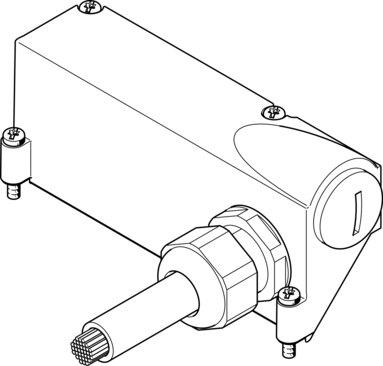

Connecting cable VMPAL-KMSK-S-SD25-IP67-2.5
The Festo 560413 is an industrial component featuring an electrical cable with plug design weighing 610 g, a 2.5 m cable length, a 12.5 mm cable diameter, and a 25 x 0.34 mm² cable configuration suitable for energy chains with a minimum bending radius of 63 mm. Protected to IP67 per IEC 60529, this assembly utilizes a TPE-U(PU) cable sheath, exhibits a moderate corrosion resistance class (CRC 2), and operates at ambient temperatures from -5 °C to 80 °C with flexible cable installation while conforming to VDMA24364-B1/B2-L LABS (PWIS), EU RoHS, and UK RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560413
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560413.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 610 g
- Electrical connection
- Cable with plug
- Cable length
- 2.5 m
- Cable characteristic
- Suitable for energy chains
- Min. cable bending radius
- 63 mm
- Cable diameter
- 12.5 mm
- Cable design
- 25 x 0.34 mm²
- Degree of protection
- IP67 | As per IEC 60529
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560413. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
