Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
560414

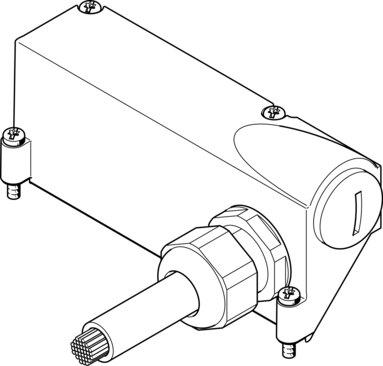

Connecting cable VMPAL-KMSK-S-SD25-IP67-5
The Festo 560414 industrial component weighs 1125 g and features a cable with plug design measuring 5 m in length and 12.5 mm in diameter, utilizing 25 x 0.34 mm² conductors within a TPE-U(PU) cable sheath. This assembly provides IP67 degree of protection as per IEC 60529, a minimum cable bending radius of 63 mm, and suitability for energy chains with flexible cable installation ambient temperatures ranging from -5 °C to 80 °C. The unit includes CE and UKCA markings as per respective EU and UK RoHS directives, RoHS compliant materials, VDMA24364-B1/B2-L LABS (PWIS) conformity, and a corrosion resistance class of CRC 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560414
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560414.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 1125 g
- Electrical connection
- Cable with plug
- Cable length
- 5 m
- Cable characteristic
- Suitable for energy chains
- Min. cable bending radius
- 63 mm
- Cable diameter
- 12.5 mm
- Cable design
- 25 x 0.34 mm²
- Degree of protection
- IP67 | As per IEC 60529
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560414. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
