Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
560419

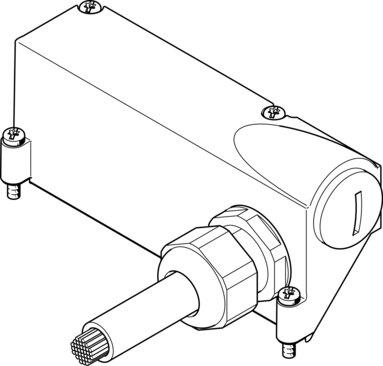

Connecting cable VMPAL-KM-S-SD25-IP67-2.5
This Festo industrial component, part number 560419, features an integrated standard cable with a plug measuring 2.5 m in length, 10.2 mm in diameter, and a design of 25 x 0.34 mm² with a minimum bending radius of 122 mm. The PVC cable sheath and moderate corrosion resistance class (CRC 2) support flexible cable installation ambient temperatures ranging from -5 °C to 80 °C while providing an IP67 degree of protection per IEC 60529. Weighing 645 g, the assembly complies with EU RoHS and UK RoHS directives, VDMA24364-B1/B2-L LABS conformity, and bears CE and UKCA markings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560419
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560419.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 645 g
- Electrical connection
- Cable with plug
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Min. cable bending radius
- 122 mm
- Cable diameter
- 10.2 mm
- Cable design
- 25 x 0.34 mm²
- Degree of protection
- IP67 | As per IEC 60529
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560419. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
