Festo
560425

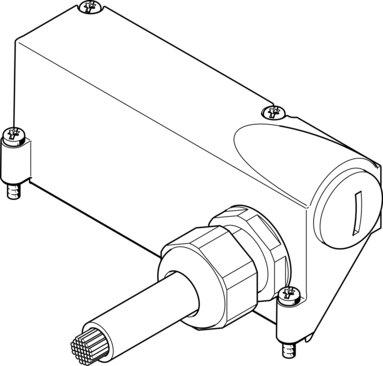

Connecting cable VMPAL-KM-S-SD44-IP67-2.5
The Festo 560425 is an industrial component featuring a standard 2.5 m cable with plug, a cable diameter of 9.6 mm, and a cable design of 36 x 0.25 mm² requiring a minimum bending radius of 115 mm. Constructed with a PVC cable sheath and offering an IP67 degree of protection per IEC 60529, this 467 g unit operates within an ambient temperature range of -5 °C to 80 °C for flexible installations and provides moderate corrosion stress resistance (CRC 2). It includes RoHS-compliant materials alongside CE marking as per the EU RoHS directive and UKCA marking to UK RoHS instructions, maintaining VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560425
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560425.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 467 g
- Electrical connection
- Cable with plug
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Min. cable bending radius
- 115 mm
- Cable diameter
- 9.6 mm
- Cable design
- 36 x 0.25 mm²
- Degree of protection
- IP67 | As per IEC 60529
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- PVC
