Festo
560427

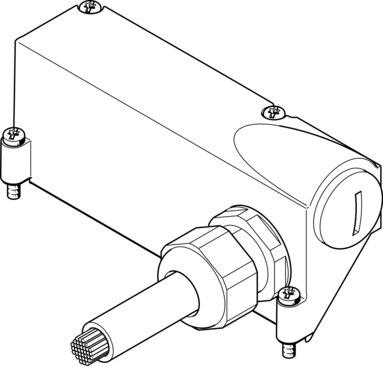

Connecting cable VMPAL-KM-S-SD44-IP67-10
The Festo 560427 is an industrial component featuring a 10-meter standard cable with a plug, a cable diameter of 9.6 mm, and a cable design of 36 x 0.25 mm² with an 115 mm minimum bending radius. Constructed with a PVC cable sheath and offering IP67 degree of protection per IEC 60529, this unit supports a flexible cable installation ambient temperature range of -5 °C to 80 °C and features a moderate corrosion resistance class (CRC) of 2. It complies with EU and UK RoHS directives, alongside LABS conformity per VDMA24364-B1/B2-L, and has a product weight of 1577 g. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560427
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560427.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product weight
- 1577 g
- Electrical connection
- Cable with plug
- Cable length
- 10 m
- Cable characteristic
- Standard
- Min. cable bending radius
- 115 mm
- Cable diameter
- 9.6 mm
- Cable design
- 36 x 0.25 mm²
- Degree of protection
- IP67 | As per IEC 60529
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- PVC
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560427. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
