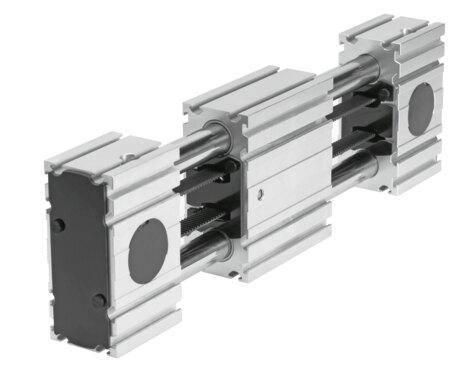

Reference imageConfirm configuration by manufacturer part number.
Festo
560505
Belt driven linear actuator ELGR-TB-...-35- -
The Festo 560505 is an electromechanical linear axis featuring a toothed belt with a 2 mm pitch, an 18.46 mm drive pinion effective diameter, and a 0.094% toothed belt elongation. Designed with a size 35 profile, a working stroke from 50 mm to 800 mm, and options for a plain-bearing guide or recirculating ball bearing, this component accommodates stepper or servo motors while delivering a max acceleration of 50 m/s², speeds ranging from 0.9 m/s to 3 m/s, and a repetition accuracy of ±0.1 mm. It supports a 100% duty cycle, a maximum driving torque of 0.46 Nm, and a maximum force Fy of 50 N within an ambient temperature range of -10 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560505
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560505.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 18.46 mm
- Working stroke
- 50 mm...800 mm
- Size
- 35
- Toothed belt elongation
- 0.094 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide | Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 0.9 m/s...3 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 3770 mm⁴
- 2nd moment of area Iz
- 4190 mm⁴
- Max. driving torque
- 0.46 Nm
- Max. force Fy
- 50 N
- Max. force Fz
- 50 N
- Max. no-load resistance to shifting
- 10.8 N
- Max. feed force Fx
- 50 N
- No-load driving torque
- 0.1 Nm
- Mass moment of inertia JH per meter of stroke
- 0.026 kgcm²
- Mass moment of inertia JL per kg of payload
- 0.85 kgcm²
- Feed constant
- 58 mm/U
- Reference service life
- 5000 km
- Additional moving mass per 10 mm stroke
- 0.31 g
