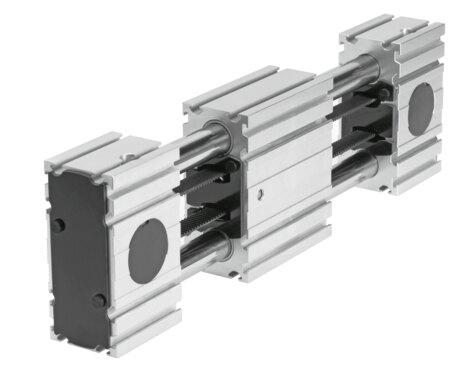

Reference imageConfirm configuration by manufacturer part number.
Festo
560507
Belt driven linear actuator ELGR-TB-...-55- -
Engineered by Festo as part number 560507, this Size 55 electromechanical linear axis features a toothed belt structural design with a working stroke of 50 mm to 1500 mm, a drive pinion effective diameter of 28.65 mm, and a 3 mm toothed belt pitch that accommodates either a stepper or servo motor. The unit provides a max driving torque of 5 Nm, max force Fy of 300 N, max acceleration of 50 m/s², speed ranging from 0.35 m/s to 3 m/s, repetition accuracy of ±0.1 mm, a 100% duty cycle, and is configured with either a plain-bearing guide or a recirculating ball bearing for mounting in any position. It includes an IP20 degree of protection, VDMA24364 Zone III LABS conformity, an ambient temperature range of -10 °C to 50 °C, 0.21% toothed belt elongation, and 2nd moments of area Iy of 38300 mm⁴ and Iz of 41180 mm⁴. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560507
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560507.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 28.65 mm
- Working stroke
- 50 mm...1500 mm
- Size
- 55
- Toothed belt elongation
- 0.21 %
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide | Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 0.35 m/s...3 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 38300 mm⁴
- 2nd moment of area Iz
- 41180 mm⁴
- Max. driving torque
- 5 Nm
- Max. force Fy
- 300 N
- Max. force Fz
- 300 N
- Max. no-load resistance to shifting
- 27.9 N
- Max. feed force Fx
- 350 N
- No-load driving torque
- 0.4 Nm
- Mass moment of inertia JH per meter of stroke
- 0.19 kgcm²
- Mass moment of inertia JL per kg of payload
- 2.05 kgcm²
- Feed constant
- 90 mm/U
- Reference service life
- 5000 km
- Additional moving mass per 10 mm stroke
- 0.92 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560507. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
