Festo
560699

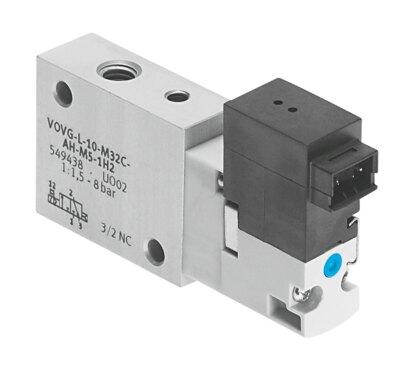

Air solenoid valve VOVG-L10-M32U-AH-M5-1H2
The Festo 560699 is a 3/2-way monostable open industrial component featuring a 10 mm width, a piston gate valve structural design, and a normal nominal flow rate of 200 l/min normalized to DIN 1343. This electrically actuated, piloted valve operates at 24V DC within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) and utilizes an M5 pneumatic working port with soft sealing. It incorporates a pneumatic spring reset method, non-detenting manual override, adjustable exhaust air function, positive overlap lap, and an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560699
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560699.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 200 l/min
- Pneumatic working port
- M5
- Operating voltage
- 24V DC
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Nominal width
- 2.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 10 ms
- On switching time
- 12 ms
- Coil characteristics
- 24 V DC: 1.0 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Electrical connection
- 2-pin | Plug
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560699. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
