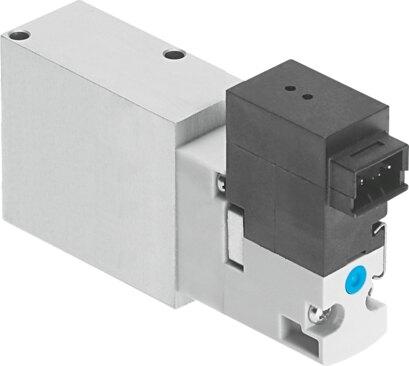

Reference imageConfirm configuration by manufacturer part number.
Festo
560711
Air solenoid valve VOVG-B12-M32U-AH-F-1H2
The Festo 560711 is a 12 mm wide industrial component featuring a 3/2-way monostable open valve function with piloted electrical actuation and an operating voltage of 24V DC. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar or 29 psi to 116 psi), this piston gate valve delivers a normal nominal flow rate of 180 l/min through a sub-base pneumatic working port. It incorporates a pneumatic spring reset method, soft sealing principle, positive overlap lap, non-reversible flow direction, and an adjustable exhaust air function with a 2.1 mm nominal width. The unit includes a non-detenting manual override, offers IP40 protection, can be mounted in any position, and achieves an on switching time of 12 ms and off switching time of 10 ms. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560711
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560711.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 12 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 180 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Nominal width
- 2.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 10 ms
- On switching time
- 12 ms
- Coil characteristics
- 24 V DC: 1.0 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Electrical connection
- 2-pin | Plug
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560711. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
