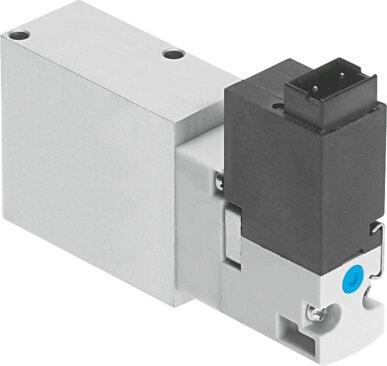

Reference imageConfirm configuration by manufacturer part number.
Festo
560712
Air solenoid valve VOVG-B12-M32U-AH-F-1H3
The Festo 560712 is a 12 mm wide industrial component featuring a 3/2-way monostable open valve function with piloted, electrical actuation and a non-detenting manual override. This piston gate valve operates at 24V DC within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) and delivers a normal nominal flow rate of 180 l/min through a sub-base pneumatic working port. Incorporating a soft sealing principle, positive overlap, adjustable exhaust air function, and pneumatic spring reset, the unit achieves a 12 ms on switching time and a 10 ms off switching time under an IP40 degree of protection with any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560712
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560712.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 12 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 180 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Nominal width
- 2.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 10 ms
- On switching time
- 12 ms
- Coil characteristics
- 24 V DC: 1.0 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -5 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Electrical connection
- 2-pin | Plug
