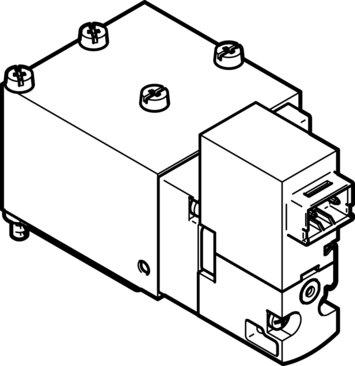

Name: Festo 560713 Air solenoid valve VOVG-B12-M52Q-AH-F-1H2
Brand: Festo

Air solenoid valve VOVG-B12-M52Q-AH-F-1H2

The Festo part number 560713 is a 25 mm wide electrical industrial component featuring a 5/2-way monostable valve function and a piston gate valve structural design. It operates on 24V DC within an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar, 29 psi to 116 psi) and delivers a normal nominal flow rate of 180 l/min through a sub-base pneumatic working port. Additional technical specifications include a pneumatic spring reset method, soft sealing principle, piloted control type, non-detenting manual override, and IP40 degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560713
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560713.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 25 mm
Normal nominal ow rate (normalized to DIN 1343): 180 l/min
Pneumatic working port: Sub-base
Operating voltage: 24V DC
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Structural design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: IP40
Nominal width: 2.1 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Flow direction: Non-reversible
Lap: Positive overlap
Switching time oﬀ: 18 ms
On switching time: 15 ms
Coil characteristics: 24 V DC: 1.0 W
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: -5 °C...50 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -5 °C...50 °C
Electrical connection: 2-pin | Plug
