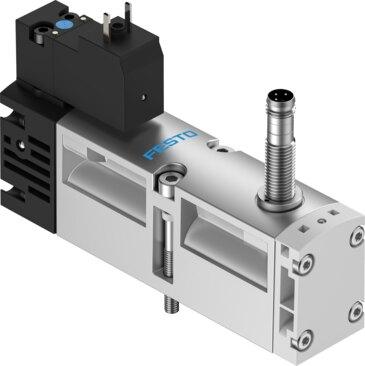

Reference imageConfirm configuration by manufacturer part number.
Festo
560726
Air solenoid valve VSVA-B-M52-MZ-A1-1C1-APP
The Festo 560726 is an electrically actuated 5/2-way monostable industrial component utilizing a piston gate valve structural design with a soft sealing principle and a 9 mm nominal width. Operating at 24V DC across a pressure range of -0.09 MPa to 1.6 MPa, this 26 mm wide unit achieves a normal nominal flow rate of 1100 l/min and features an adjustable exhaust air function via a throttle plate or individual sub-base. Certified with C-Tick, c UL us, KC-EMV, and IP65/NEMA 4 degrees of protection, it conforms to ISO 15407-1 and VDMA 24563 standards with mounting in any position. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560726
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560726.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1 | Connecting plate size 01 according to VDMA 24563 | G1/4
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- C-Tick | c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Certicate issuing authority
- UL MH19482
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1 | VDMA 24563
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Any
- Measuring principle
- Inductive
- Lap
- Positive overlap
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560726. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
