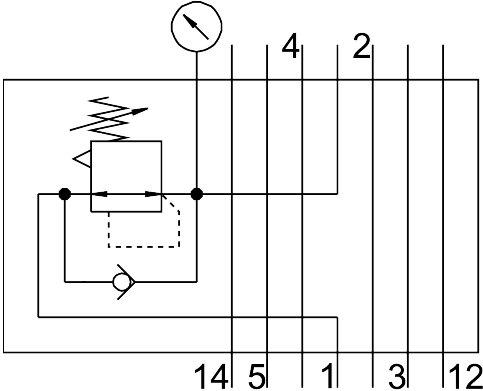

Name: Festo 560758 Regulator plate VABF-S4-2-R1C2-C-6E
Brand: Festo

Regulator plate VABF-S4-2-R1C2-C-6E

The Festo part number 560758 is an industrial component featuring an 18 mm width and an ISO 15407-2 standardized design with any mounting position. This unit provides constant output pressure and secondary exhausting within a regulation range of 0.05 MPa to 0.6 MPa (0.5 bar to 6 bar, or 7.25 psi to 87 psi) for an operating pressure of 0.6 MPa (6 bar) and inlet pressure ranging from 0.5 bar to 10 bar. Operating with compressed air as per ISO 8573-1:2010 [7:4:4] and offering IP65 and NEMA 4 degrees of protection, the 393 g assembly carries CE and UKCA markings compliant with electrical equipment directives. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560758
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560758.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 18 mm
Based on norm: ISO 15407-2
Mounting position: Any
Controller function: Constant output pressure | With secondary exhausting
Optional pressure gauge: Possible
Operating pressure: 0.6 MPa | 6 bar
Pressure regulation range MPa: 0.05 MPa...0.6 MPa
Pressure regulation range: 0.5 bar...6 bar
Pressure regulation range psi: 7.25 psi...87 psi
Inlet pressure 1: 0.5 bar...10 bar
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -5 °C...50 °C
Product weight: 393 g
Vertical stacking mounting type: On manifold sub-base | On individual sub-base
Pressure gauge connection: With retaining clamp
Material of operator panel: PA
Controller housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560758. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
