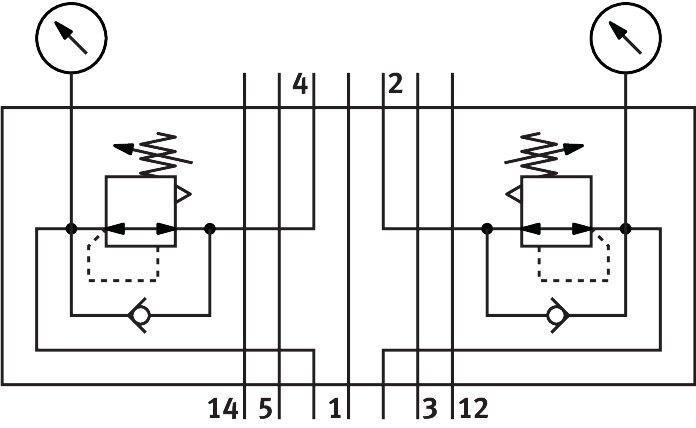

Reference imageConfirm configuration by manufacturer part number.
Festo
560767
Regulator plate VABF-S4-2-R4C2-C-10E
The Festo 560767 is an industrial component featuring an 18 mm width and ISO 15407-2 compliance with an any mounting position. It provides constant output pressure with secondary exhausting, an operating pressure of 1 MPa or 10 bar, an inlet pressure range from 0.5 bar to 10 bar, and a pressure regulation range of 0.2 MPa to 0.85 MPa (2 bar to 8.5 bar, or 29 psi to 123.25 psi). The unit supports optional pressure gauges, operates with compressed air as per ISO 8573-1:2010 [7:4:4], allows oil lubrication, and carries CE marking per the EU low voltage directive alongside UKCA marking. Weighing 654 g with an IP65 and NEMA 4 degree of protection, 0 - No corrosion stress CRC, VDMA24364-B1/B2-L LABS conformity, and an ambient temperature range of -5 °C to 50 °C, it functions with pilot medium of compressed air as per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560767
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560767.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Operating pressure
- 1 MPa | 10 bar
- Pressure regulation range MPa
- 0.2 MPa...0.85 MPa
- Pressure regulation range
- 2 bar...8.5 bar
- Pressure regulation range psi
- 29 psi...123.25 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 654 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
