Name: Festo 560770 Regulator plate VABF-S4-1-R4C2-C-6E
Brand: Festo

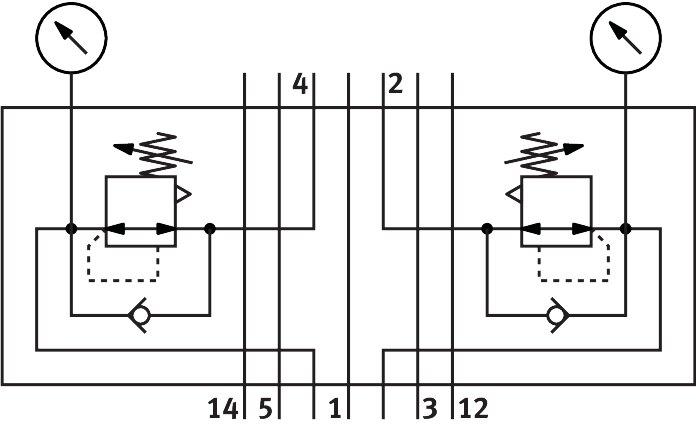

Regulator plate VABF-S4-1-R4C2-C-6E

The Festo part number 560770 is a 26 mm industrial component built on the ISO 15407-2 norm with an IP65 and NEMA 4 degree of protection, weighing 735 g. It features a constant output pressure controller function with secondary exhausting, an operating pressure of 0.6 MPa (6 bar), and a pressure regulation range of 0.2 MPa to 0.6 MPa (2 bar to 6 bar, 29 psi to 87 psi). Operating with compressed air as per ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -5 °C to 50 °C, this unit accommodates optional pressure gauges and oil lubrication. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560770
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560770.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 26 mm
Based on norm: ISO 15407-2
Mounting position: Any
Controller function: Constant output pressure | With secondary exhausting
Optional pressure gauge: Possible
Operating pressure: 0.6 MPa | 6 bar
Pressure regulation range MPa: 0.2 MPa...0.6 MPa
Pressure regulation range: 2 bar...6 bar
Pressure regulation range psi: 29 psi...87 psi
Inlet pressure 1: 0.5 bar...10 bar
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -5 °C...50 °C
Product weight: 735 g
Vertical stacking mounting type: On manifold sub-base | On individual sub-base
Pressure gauge connection: With retaining clamp
Material of operator panel: PA
Controller housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560770. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
