Festo
560776

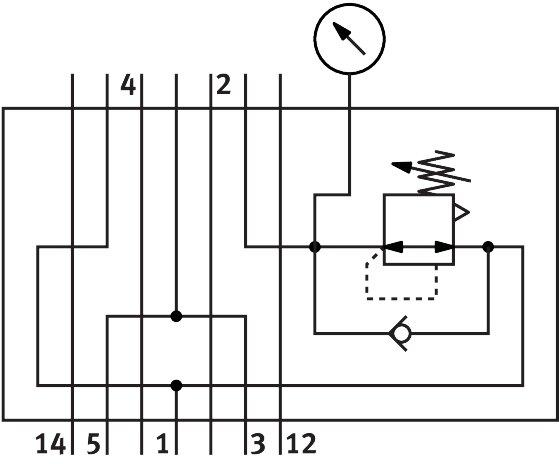

Regulator plate VABF-S4-1-R6C2-C-10E
The Festo 560776 is an industrial component measuring 26 mm in width and weighing 491 g, built upon the ISO 15407-2 norm for any mounting position. It features a controller function for constant output pressure with secondary exhausting, an operating pressure of 1 MPa (10 bar), and a pressure regulation range spanning 0.05 MPa to 0.85 MPa (0.5 bar to 8.5 bar, 7.25 psi to 123.25 psi) with an inlet pressure of 0.5 bar to 10 bar. Designed with IP65 and NEMA 4 degrees of protection, an ambient temperature range of -5 °C to 50 °C, and 0 - No corrosion stress resistance, it operates with compressed air as per ISO 8573-1:2010 [7:4:4] where oil lubrication is possible. CE marked as per the EU low voltage directive and UKCA marked to UK instructions for electrical equipment, this unit conforms to VDMA24364-B1/B2-L LABS (PWIS) and allows an optional pressure gauge. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560776
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560776.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Operating pressure
- 1 MPa | 10 bar
- Pressure regulation range MPa
- 0.05 MPa...0.85 MPa
- Pressure regulation range
- 0.5 bar...8.5 bar
- Pressure regulation range psi
- 7.25 psi...123.25 psi
- Inlet pressure 1
- 0.5 bar...10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 491 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pressure gauge connection
- With retaining clamp
- Material of operator panel
- PA
- Controller housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560776. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
