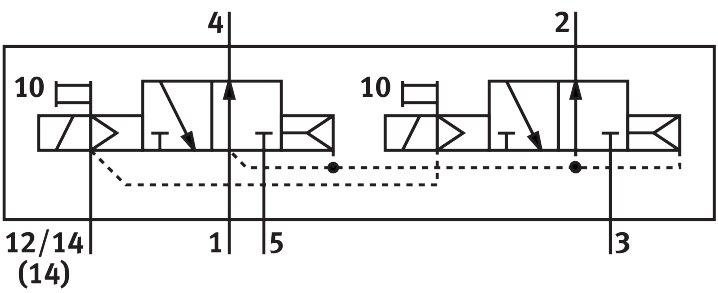

Reference imageConfirm configuration by manufacturer part number.
Festo
560827
Air solenoid valve VSVA-B-T32U-AZD-D2-1T1L
The Festo 560827 is an electrical piston gate valve featuring a 2x3/2 open monostable valve function, a 52 mm width dimension, and a normal nominal flow rate of 2400 l/min normalized to DIN 1343. Operating on 24V DC with an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this ISO 5599-2 compliant component includes an external pilot air supply port, adjustable exhaust air function, soft sealing principle, and IP65 / NEMA 4 degree of protection. Certifications and markings include c UL us - recognized (OL), KC-EMV, and CE marking per the EU EMC directive, with structural attributes encompassing both detenting and non-detenting manual override, piloted control, and any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560827
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560827.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Width
- 52 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2400 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-2 | G1/2
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Degree of protection
- IP65 | NEMA 4
- Width dimension
- 59 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-2
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 3000 l/min
- Flow rate of pneumatic valve on individual sub-base
- 2600 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 2400 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560827. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
