Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
560837

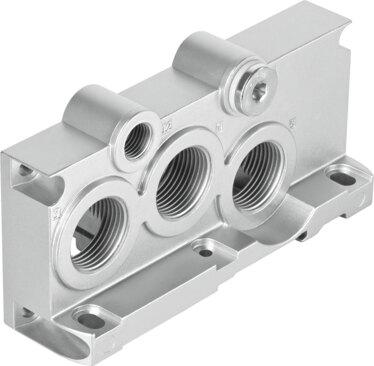

End plate VABE-S6-2R-G34
The Festo 560837 is an industrial component designed for valve terminal type 44 applications in accordance with the ISO 5599-2 norm. Constructed with a die-cast aluminum end plate and RoHS-compliant materials, this 336 g unit features G3/4 pneumatic connections 1, 3, and 5 alongside a G1/4 pilot air port 12, supporting an operating pressure range of -0.09 MPa to 1 MPa. It accommodates any mounting position and exhibits a corrosion resistance class of 0 with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560837
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560837.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Valve terminal type
- 44
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 336 g
- Pilot air port 12
- G1/4
- Pneumatic connection 1
- G3/4
- Pneumatic connection 3
- G3/4
- Pneumatic connection 5
- G3/4
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560837. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
