Festo
560838

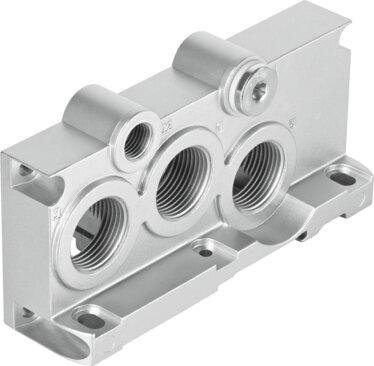

End plate VABE-S6-2R-N34
The Festo part number 560838 is an industrial component designed for valve terminal type 44 with an ISO 5599-2 norm basis and any mounting position. Constructed with a die-cast aluminum end plate, this 336 g unit features 3/4 NPT pneumatic connections 1, 3, and 5, a 1/4 NPT pilot air port 12, and operates within a pressure range of -0.09 MPa to 1 MPa. It conforms to VDMA24364-B1/B2-L LABS conformity, carries a corrosion resistance class of 0 for no corrosion stress, and includes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560838
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560838.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Valve terminal type
- 44
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 336 g
- Pilot air port 12
- 1/4 NPT
- Pneumatic connection 1
- 3/4 NPT
- Pneumatic connection 3
- 3/4 NPT
- Pneumatic connection 5
- 3/4 NPT
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560838. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
