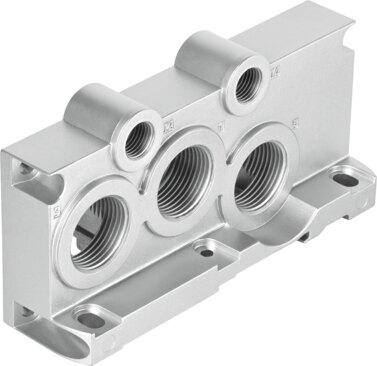

Name: Festo 560839 End plate VABE-S6-2RZ-G34
Brand: Festo

End plate VABE-S6-2RZ-G34

The Festo part number 560839 is an industrial component designed for valve terminal type 44, built to the ISO 5599-2 norm with a die-cast aluminum end plate and a product weight of 336 g. It features G3/4 pneumatic connections 1, 3, and 5, G1/4 pilot air ports 12 and 14, and supports an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) in any mounting position. This RoHS compliant unit holds a corrosion resistance class of CRC 0 with VDMA24364-B1/B2-L LABS conformity and experiences no corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560839
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560839.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: ISO 5599-2
Mounting position: Any
Valve terminal type: 44
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 336 g
Pilot air port 12: G1/4
Pilot air port 14: G1/4
Pneumatic connection 1: G3/4
Pneumatic connection 3: G3/4
Pneumatic connection 5: G3/4
Note on materials: RoHS compliant
End plate material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560839. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
