560840

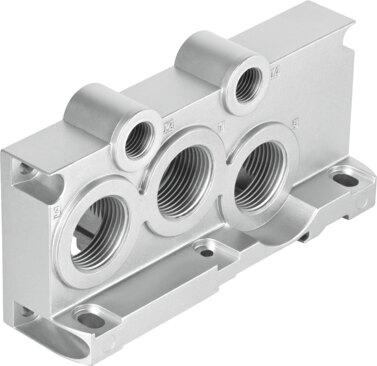

Name: Festo 560840 End plate VABE-S6-2RZ-N34
Brand: Festo

End plate VABE-S6-2RZ-N34

The Festo part number 560840 is an industrial component designed as a type 44 valve terminal featuring a die-cast aluminum end plate and RoHS compliant materials. This ISO 5599-2 compliant unit supports any mounting position and operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar). It has a product weight of 336 g, a corrosion resistance class of CRC 0, VDMA24364-B1/B2-L LABS conformity, 3/4 NPT pneumatic connections 1, 3, and 5, and 1/4 NPT pilot air ports 12 and 14. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560840
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560840.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: ISO 5599-2
Mounting position: Any
Valve terminal type: 44
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 336 g
Pilot air port 12: 1/4 NPT
Pilot air port 14: 1/4 NPT
Pneumatic connection 1: 3/4 NPT
Pneumatic connection 3: 3/4 NPT
Pneumatic connection 5: 3/4 NPT
Note on materials: RoHS compliant
End plate material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560840. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
