Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

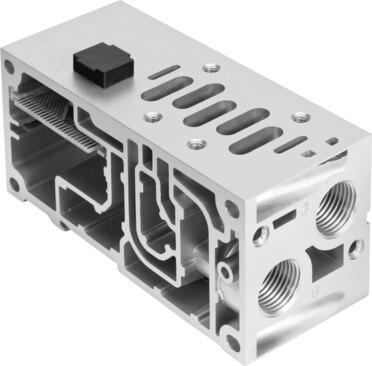

Reference imageConfirm configuration by manufacturer part number.
Festo
560842
Manifold sub-base VABV-S2-2S-G12-T1
The Festo 560842 is a type 44 industrial component valve terminal featuring a width dimension of 59 mm, a product weight of 610 g, and a plate material of die-cast aluminum with RoHS-compliant materials. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and incorporates G1/2 pneumatic connections 2 and 4, a corrosion resistance class (CRC) of 0 for no corrosion stress, and VDMA24364-B1/B2-L LABS conformity. This unit carries a CE marking as per the EU low voltage directive and a UKCA marking to UK instructions for electrical equipment. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560842
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560842.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 59 mm
- Valve terminal type
- 44
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 610 g
- Pneumatic connection 2
- G1/2
- Pneumatic connection 4
- G1/2
- Note on materials
- RoHS compliant
- Plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560842. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
