560844

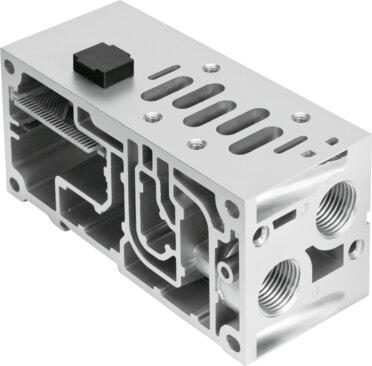

Name: Festo 560844 Manifold sub-base VABV-S2-2S-N12-T1
Brand: Festo

Manifold sub-base VABV-S2-2S-N12-T1

The Festo 560844 is an industrial component featuring a valve terminal type 44 design with a width dimension of 59 mm and a product weight of 610 g. Constructed with a die-cast aluminum plate material, it operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and incorporates 1/2 NPT pneumatic connections for ports 2 and 4. This RoHS compliant part achieves a corrosion resistance class of CRC 0 with VDMA24364-B1/B2-L LABS conformity, and bears CE and UKCA markings as per respective EU and UK directives for electrical equipment. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560844
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560844.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 59 mm
Valve terminal type: 44
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 610 g
Pneumatic connection 2: 1/2 NPT
Pneumatic connection 4: 1/2 NPT
Note on materials: RoHS compliant
Plate material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560844. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
