Festo
560938

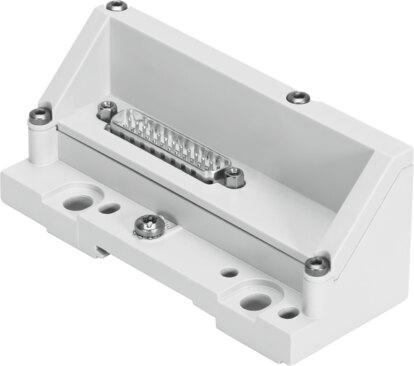

End plate VMPAL-EPL-SD25
The Festo 560938 is an industrial component featuring an interchangeable valve size manifold design supporting up to 24 valve positions and 24 solenoid coils, with a width of 43 mm, a length of 107.3 mm, and a product weight of 190 g. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) at a nominal operating voltage of 24 V DC. Built with a CRC 3 rating for high corrosion stress and an IP67 degree of protection when mounted with accessories VMPAL-KM, the unit connects electrically via a 25-pin Sub-D plug. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560938
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560938.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Length
- 107.3 mm
- Max. no. of valve positions
- 24
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 24
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP67
- Note on degree of protection
- In mounted state | With accessories VMPAL-KM
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 190 g
- Electrical connection 1, function
- Multi-pin
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 25
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560938. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
