Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

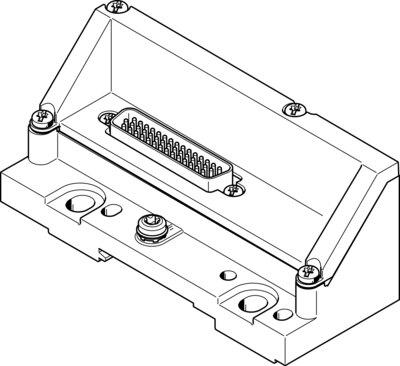

Reference imageConfirm configuration by manufacturer part number.
Festo
560939
End plate VMPAL-EPL-SD44
The Festo 560939 is an industrial component featuring an interchangeable valve size manifold design supporting a maximum of 32 valve positions and 32 solenoid coils. This unit operates within a pressure range of -0.09 MPa to 1 MPa and a pilot pressure of 0.3 MPa to 0.8 MPa, powered by a nominal operating voltage of 24 VDC via a 44-pin Sub-D plug multi-pin electrical connection. Built for high corrosion stress with a CRC of 3 rating, the 190 g assembly measures 43 mm wide by 107.3 mm long, achieves an IP67 degree of protection when mounted with VMPAL-KM accessories, and complies with RoHS and VDMA24364-B1/B2-L LABS standards for ambient temperatures between -5 °C and 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560939
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560939.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Length
- 107.3 mm
- Max. no. of valve positions
- 32
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 32
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP67
- Note on degree of protection
- In mounted state | With accessories VMPAL-KM
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 190 g
- Electrical connection 1, function
- Multi-pin
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 44
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560939. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
