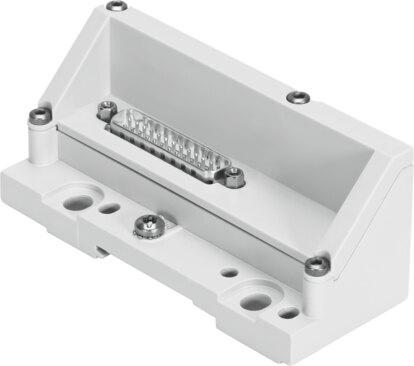

Name: Festo 560940 End plate VMPAL-EPL-SD25-IP40
Brand: Festo

End plate VMPAL-EPL-SD25-IP40

The Festo part number 560940 is an industrial component featuring a valve manifold design with interchangeable valve sizes, accommodating a maximum of 24 valve positions and 24 solenoid coils. This 190 g unit operates at pressures ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), utilizing a nominal operating voltage of 24 V DC via a 25-pin Sub-D plug multi-pin electrical connection. Built for high corrosion stress with a CRC rating of 3 and VDMA24364-B1/B2-L LABS conformity, the RoHS-compliant assembly measures 43 mm in width by 107.3 mm in length, achieves an IP40 degree of protection when mounted, and functions within ambient temperatures of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 560940
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 560940.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 43 mm
Length: 107.3 mm
Max. no. of valve positions: 24
Valve manifold design: Interchangeable valve sizes
Max. no. of solenoid coils: 24
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Nominal operating voltage DC: 24 V
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP40
Note on degree of protection: In mounted state
Ambient temperature: -5 °C...50 °C
Product weight: 190 g
Electrical connection 1, function: Multi-pin
Electrical connection 1, connection type: Plug
Electrical connection 1, connection technology: Sub-D
Electrical connection 1, number of pins/wires: 25
Note on materials: RoHS compliant
End plate material: Die-cast aluminum | PA-reinforced

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 560940. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
