Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

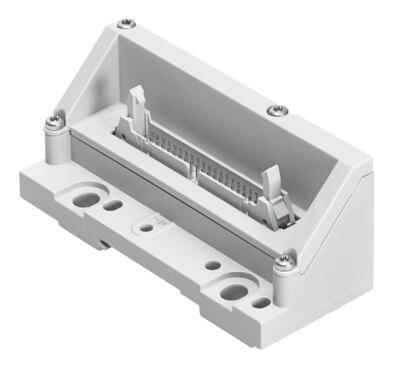

Reference imageConfirm configuration by manufacturer part number.
Festo
560942
End plate VMPAL-EPL-FL40-IP40
The Festo part number 560942 is an industrial component featuring an interchangeable valve manifold design supporting up to 32 valve positions and 32 solenoid coils. Weighing 190 g with dimensions of 43 mm in width and 107.3 mm in length, this unit operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). It requires a nominal operating voltage of 24 V DC and utilizes a 40-pin multi-pin plug electrical connection with connection pattern FC. Rated for IP40 protection in the mounted state, the component offers corrosion resistance class CRC 3 and conforms to VDMA24364-B1/B2-L LABS standards while functioning at ambient temperatures between -5 °C and 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560942
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560942.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Length
- 107.3 mm
- Max. no. of valve positions
- 32
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 32
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 190 g
- Electrical connection 1, function
- Multi-pin
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- Connection pattern FC
- Electrical connection 1, number of pins/wires
- 40
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560942. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
