Festo
560943

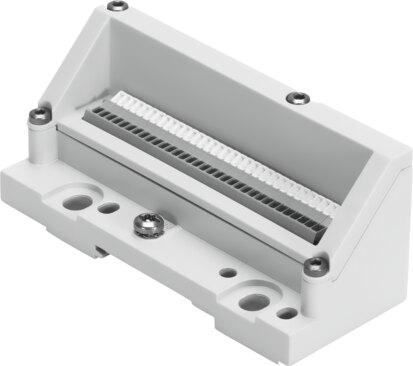

End plate VMPAL-EPL-KL33-IP40
The Festo 560943 is an industrial component featuring an interchangeable valve size manifold design supporting a maximum of 32 valve positions and 32 solenoid coils. This unit operates within a pressure range of -0.09 MPa to 1 MPa and a pilot pressure of 0.3 MPa to 0.8 MPa at a nominal operating voltage of 24 V DC. Constructed with a corrosion resistance class of 3 for high corrosion stress, it has dimensions of 43 mm in width, 107.3 mm in length, and weighs 190 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560943
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560943.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Length
- 107.3 mm
- Max. no. of valve positions
- 32
- Valve manifold design
- Interchangeable valve sizes
- Max. no. of solenoid coils
- 32
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Nominal operating voltage DC
- 24 V
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 190 g
- Electrical connection 1, function
- Multi-pin
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, connection technology
- Spring-loaded terminal
- Electrical connection 1, number of pins/wires
- 33
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560943. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
