Festo
560947

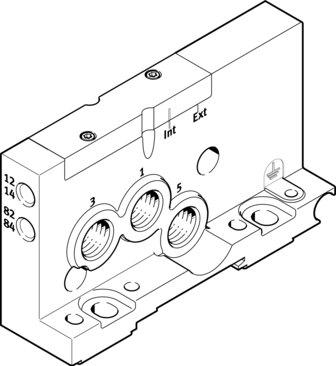

End plate VMPAL-EPR-SP
The Festo 560947 is an industrial component featuring an integrated coding cover for determining internal or external control air supply within a reversible flow direction and interchangeable valve size manifold design. This RoHS compliant part weighs 180 g with dimensions of 28.8 mm in width and 107.3 mm in length, incorporating M7 pilot air and exhaust ports along with G1/4 pneumatic connections 1, 3, and 5. It operates at a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) across an ambient temperature range of -5 °C to 50 °C. Rated for IP65 and IP67 protection when mounted, the assembly provides a CRC corrosion resistance class of 3 and adheres to VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560947
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560947.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 28.8 mm
- Length
- 107.3 mm
- Integrated function
- Coding cover for determining the control air supply (internal or external)
- Flow direction
- Reversible
- Valve manifold design
- Interchangeable valve sizes
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | IP67
- Note on degree of protection
- In mounted state
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 180 g
- Pilot air port 12/14
- M7
- Pilot exhaust air port 82/84
- M7
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- End plate material
- Die-cast aluminum | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560947. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
