Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

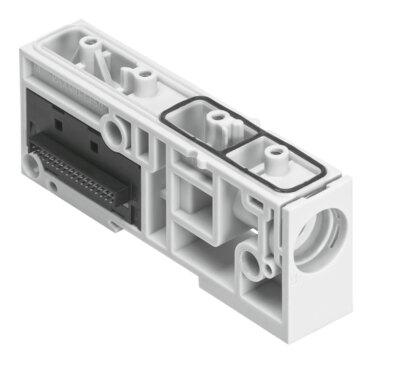

Reference imageConfirm configuration by manufacturer part number.
Festo
560950
Power supply module VMPAL-SP-0
The Festo part number 560950 is an industrial component featuring an integrated electrical interlinking module and an interchangeable valve size manifold design. Constructed with a wrought aluminum alloy and PA-reinforced power supply module, this unit weighs 50 g and measures 23.2 mm in width by 107.3 mm in length. It operates at a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) with a pneumatic connection 1 for a 20 mm cartridge. The component provides a corrosion resistance class of 3 for high corrosion stress, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560950
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560950.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 23.2 mm
- Length
- 107.3 mm
- Integrated function
- With electrical interlinking module
- Valve manifold design
- Interchangeable valve sizes
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 50 g
- Pneumatic connection 1
- for 20 mm cartridge
- Note on materials
- RoHS compliant
- Power supply module material
- Wrought aluminum alloy | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560950. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
