Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

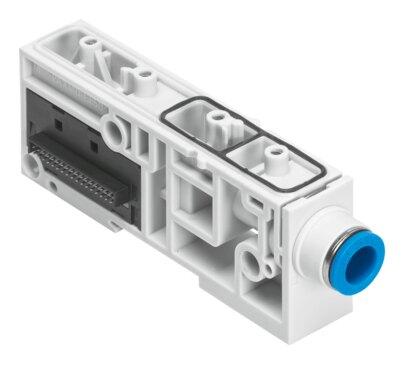

Reference imageConfirm configuration by manufacturer part number.
Festo
560953
Power supply module VMPAL-SP-QS3/8"
The Festo 560953 industrial component features an integrated electrical interlinking module and a valve manifold design supporting interchangeable valve sizes, measuring 23.2 mm in width and 107.3 mm in length with a product weight of 50 g. Constructed from wrought aluminum alloy and PA-reinforced materials with RoHS compliance, it delivers an operating pressure range of -0.9 bar to 10 bar, a pilot pressure range of 3 bar to 8 bar, and a CRC rating of 3 for high corrosion stress alongside VDMA24364-B1/B2-L LABS conformity. This unit operates within ambient temperatures from -5 °C to 50 °C and includes a pneumatic connection 1 designed for tubing with an outer diameter of 3/8". Submit the exact part number, quantity, and application requirements to receive a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 560953
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 560953.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 23.2 mm
- Length
- 107.3 mm
- Integrated function
- With electrical interlinking module
- Valve manifold design
- Interchangeable valve sizes
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 50 g
- Pneumatic connection 1
- For tubing outer Ø 3/8"
- Note on materials
- RoHS compliant
- Power supply module material
- Wrought aluminum alloy | PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 560953. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
